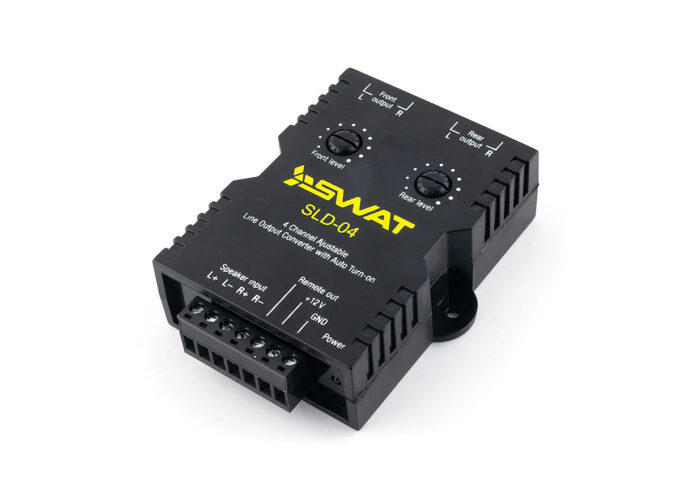

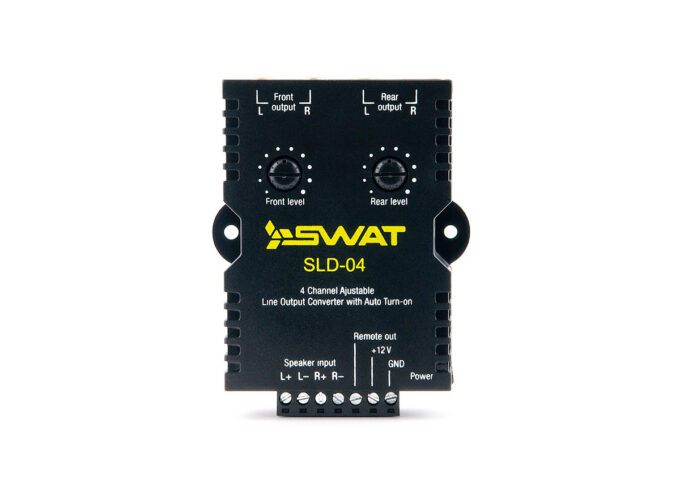

Converting a high level signal (HI-input) to a low level (RCA), for connecting power amplifiers to head units without RCA outputs.
Number of high-level channels (input) 4
Number of RCA channels (output) 4
Automatic switching on when there is a signal at the input yes
Gain control yes (front-rear)
Powered by 12 V on-board network
Input signal power 60 W
Maximum voltage at RCA outputs 4
Remote output yes (1A)
Delay on / off amplifier yes (3 seconds)
Case material plastic
Dimensions L x W x H 90 x 65 x 28 mm
