Strength class AB
Power RMS (4 ohms) 4 x 80 W
Power RMS (2 ohm) 4 x 120W
Power RMS (4 ohm bridge) 2 x 240W
Frequency response 20 Hz – 25 kHz
Input sensitivity 0.2-6V

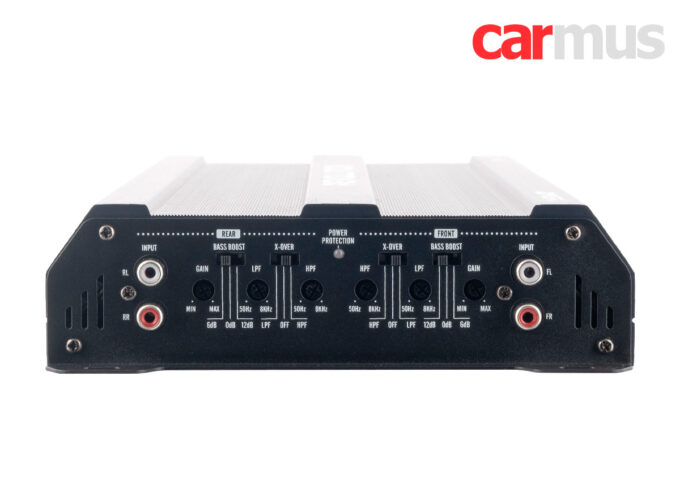

Crossover modes HPF, LPF, Off
High pass filter 50 Hz – 8 kHz (12 dB/oct)
Low pass filter 50 Hz – 8 kHz (12 dB/oct)
Subsonic no
Bass Boost 0-6-12 dB
Harmonic distortion ⩽0.1%
Signal-to-noise ratio > 90 dB
Protection Against overvoltage, output short circuit, overheating
Supply voltage 10 – 16 V
Dimensions (L x W x H) 360 x 186 x 52
Weight 3,400
